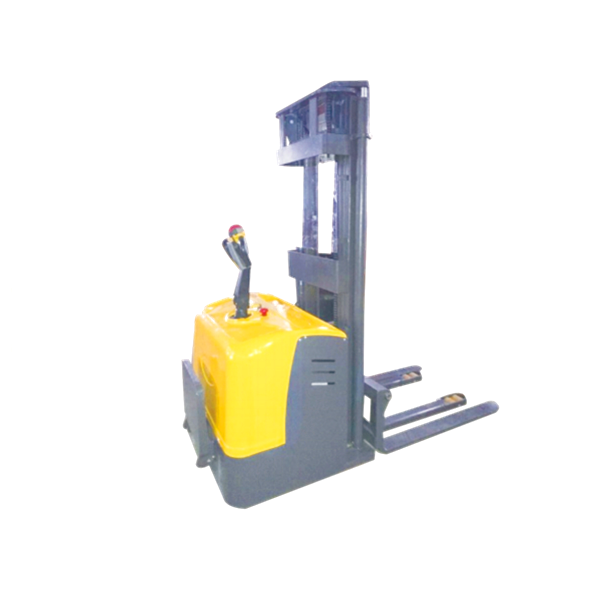

Full Electric Pallet Stacker

Features

Capacity:1000kg/1500kg/2000kg.

Lifting Height:1600mm/2000mm/2500mm/3000mm/3500mm.

1. 24V/180ah: mainteance-free battery.

2. Strong struture body and strengthen fork,alloy steel insert legs.

2. Speed Limited for high position: to aviod the possibility of products' overturning when high speed in high position.
3. Delayed acceleration function: if the operator rotates up to the fastest speed, the machine's special working energy will be automatically turned on. It will operate at a low speed for 3 to 8 seconds, so as to avoid too fast speed to cause harm to people.
4. Curve safe control: the forklift will reduce the speed automatic when turning,to aviod the ejection of operator and products from the vehicle by the high speed.
5. Safe cutoff valve: to protect the operator and goods in well condition.
6. Vertical Drive system: to save the energy and have long time working.
7. Durability: Reinforced frame and mast have long service life.

Technical Parameter of Electric Forklift Stacker

Model
CTD10
CTD15
CTD20
Rated capacity(kg)
1000
1500
2000
Load centre(mm)
500
500
500
Operator type
walkie/driving
Fork length(mm)
1070
1070
1070
Min.lowered fork height(mm)
85
85
85
Max.fork lifting height(mm)
1600/2500/3150
1600/2500/3150
1600/2500
Manipulation
handle
Tire type
nylon/pu
Driving wheel size(mm)
Φ250*80
Φ250*80
Φ250*80
Min.turning radius(mm)
1500
1500
1500
Max.travel speed(km/h)
4/6
4/6
4/6
Max.lifting speed(mm/min)
80/130
80/130
80/130
Gradeability(°)
10
8
8
Driving motor(kw)
AC 1.2
AC 1.2
AC 1.2
Lifting motor(kw)
DC 2.2
DC 2.2
DC 2.2
Battery volt/capacity(V/Ah)
24/190
24/210
24/240
Reference time(h)
8
7
7
Braking
electromagnetic
Adjustable type
stepless speed regulation
Model of controler
CURTIS 1230

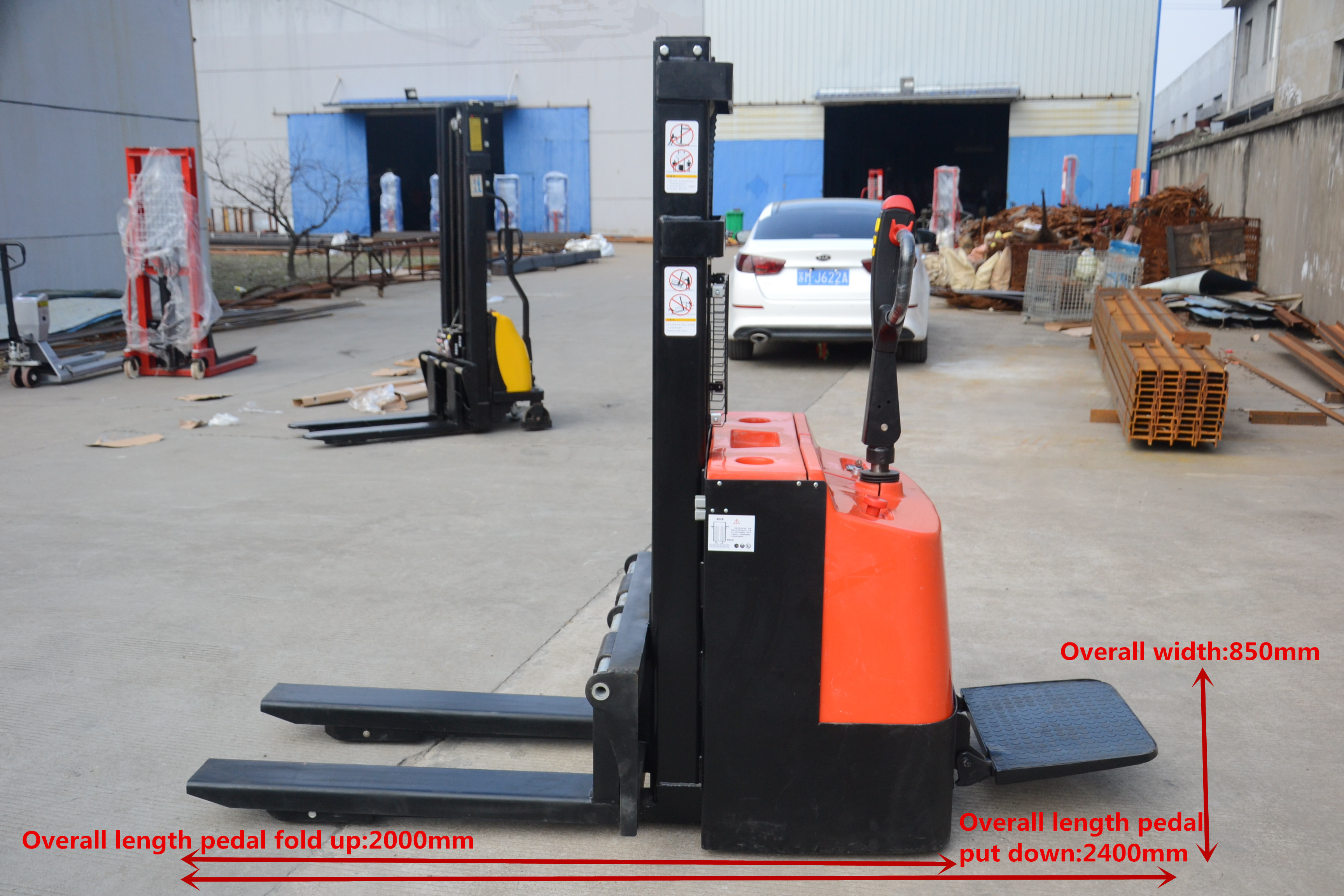

Overall size(L*W*H)
2000*860*2180
2000*860*2180
2000*860*2180
Self weight(with battery)(kg)
710-960
