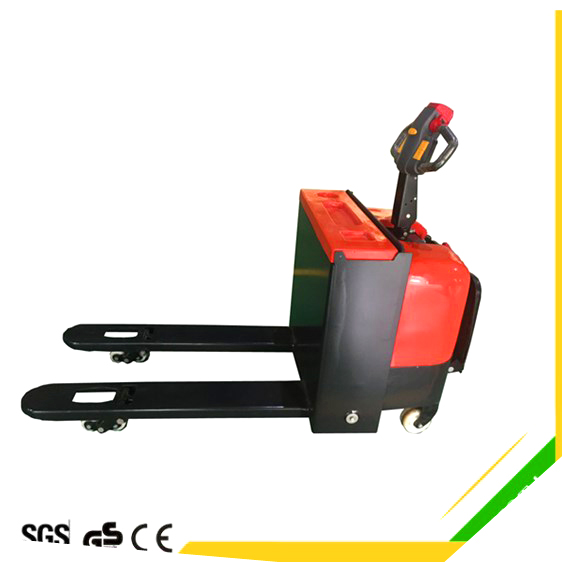

2000kg Electric Lifting Electric Walking Pallet Jack


Features

1. Electric walking and lifting: the full electric pallet truck driving wheel, wheel load, balance wheel with special process of rubber / polyurethane wheels, greatly extend the use of ordered; ultra small body design, can be applied to various narrow channel; fast running speed, strong bearing capacity, greatly improve the efficiency; imported stepless speed control computer system,large capacity batteries
2. Multi function handle: operator can start vehicle by electronic lock. Easy to control the speed of travel, if you need to speed up, just turn the handle on the acceleration switch, the greater the rotation, the faster the speed.
3. Delayed acceleration function: if the operator rotates up to the fastest speed, the machine's special working energy will be automatically turned on. It will operate at a low speed for 3 to 8 seconds, so as to avoid too fast speed to cause harm to people.
4. Power off brake function: brakes when the handle is erect, the operation of the handle down to work after the press, according to the end when the brakes, when the downhill when the goods immediately heavy, the operator can also stop on the slope to prevent the car free taxi downhill , to reduce the accident.
5. Five fulcrum structure: unique structure can bring the vehicle a higher stability, especially in the slippery floor or slope, the more play its role.
6. Drive wheel damping system: the pressure of the drive wheel changes with the heavy load, the machine damping system will be based on the light weight of their own goods to reduce their own, especially when the ground is not flat, even more unique role. On the vehicle walking, stability, self-regulation.
7. Battery capacity indicator: easy to grasp the number of battery power, power shortage automatic alarm work.


Technical Parameter of Electric Pallet Truck

  Model
CBD20
CBD30
Rated capacity(kg)
2000
3000
Load center(mm)
600
600
Operator type
walkie/driving
Fork length(mm)
1150
1200
Fork width(mm)
185
185
Fork thickness(mm)
55
55
Min.lowered fork height(mm)
85
85
Max.fork lifting height(mm)
200
200
Outside width between forks(mm)
540/685
540/685
Inside width between forks(mm)
230/365
230/365
Overall length(pedal put away/put down)(mm)
1850/2333
1850/2333
Overall width(mm)
860
860
Overall height(with/without handle)
1420/845
1420/845
Tire type
Nylon
Nylon
Driving wheel size(mm)
1pc,Φ248*75
1pc,Φ248*75
Balance wheel size(mm)
2pc,Φ80*80
2pc,Φ80*80
Bearing wheel size(mm)
4pc,Φ115*55
4pc,Φ115*55
Min.turning radius(pedal put away/put down)(mm)
1746/2158
1746/2158
Min.aisle width(pedal put away/put down)(mm)(1000*1200 pallet crossways)
1250/2458
1250/2458
Min.aisle width(pedal put away/put down)(mm)(800*1200 pallet lengthways)
2046/2345
2046/2345
Max.travel speed(laden/unladen)(km/h)
5/5
5/5
Max.lifting speed(laden/unladen)(mm/s)
56/60
56/60
Max.lowering speed(laden/unladen)(mm/s)
57/59
57/59
Gradeability(laden/unladen)
7/10
7/10
Driving motor(kw)
AC 1.2
AC 1.2
Lifting motor(kw)
DC 2.2
DC 3
Turning motor(kw)
DC 0.5
DC 0.5
Battery volt/capacity(V/Ah)
24/210
24/210
Braking
electromagnetic
Adjustable type
stepless speed regulation
Model of controler
CURTIS 1230
Self weight(with battery)(kg)
500
520
