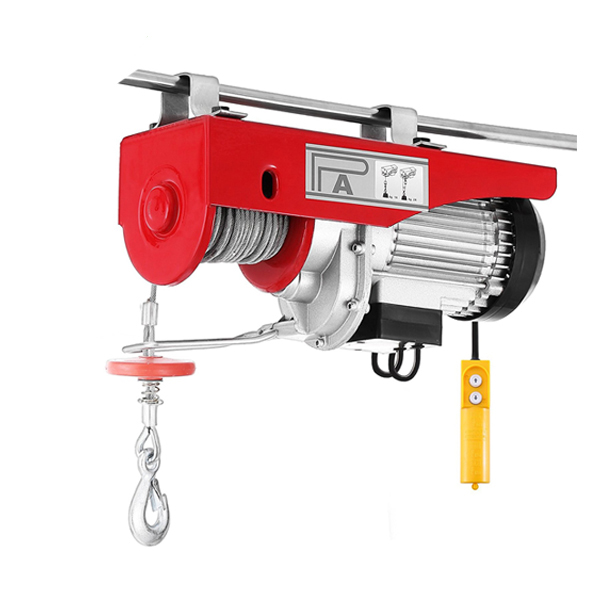

Tha capacity of PA type electric type can be 200kg, 250kg, 300kg, 400kg, 500kg, 600kg, 700kg, 800kg, 1000kg, 1200kg with double hooks.
The lifting height can be 12m,20m, 30m.
The voltage is AC 110V-240V,50/60 Hz,1 phase.
The detailed parameters are as following.You can choose what you really need.
Model | PA200 | PA250 | PA300 |
Instructions | Single hook/Double hook | Single hook/Double hook | Single hook/Double hook |
Motor power(W) | 480 | 510 | 600 |
Capacity(kg) | 100/200 | 125/250 | 150/300 |
Lifting speed(m/min) | 10/5 | 10/5 | 10/5 |
Lifting height(m) | 12/6 | 12/6 | 12/6 |
Size(mm) | 470*370*160 |
Net weight(kg) | 24/22(2pcs/ctn) |
Model | PA400 | PA500 | PA600 |
Instructions | Single hook/Double hook | Single hook/Double hook | Single hook/Double hook |
Motor power(W) | 950 | 1020 | 1200 |
Capacity(kg) | 200/400 | 250/500 | 300/600 |
Lifing speed(m/min) | 10/5 | 10/5 | 10/5 |
Lifting height(m) | 12/6 | 12/6 | 12/6 |
Size(mm) | 520*450*170 |
Net weight(kg) | 36/34(2pcs/ctn) |
Model | PA700 | PA800 | PA1000 | PA1200 |
Instructions | | | | |
Motor power(W) | 1250 | 1300 | 1600 | 1800 |
Capacity(kg) | 350/700 | 400/800 | 500/990 | 600/990 |
Lifting speed(m/min) | 8/4 | 8/4 | 8/4 | 8/4 |
Lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 |
Size(mm) | 520*450*170 | 560*250*350 |
Net weight(kg) | 38/36(2pcs/ctn) | 33/32(1pcs/ctn) |
