Product DescriptionCD1 large capacity 2t electric wire rope hoist lifting height 30mCD1 Electric Wire Rope Hoist owns normal speed which can meet the requirements of the general situation.As one kind of lifting tools, it is commonly used in many fields, such as factories, mines, ports, warehouses, g

Product Description

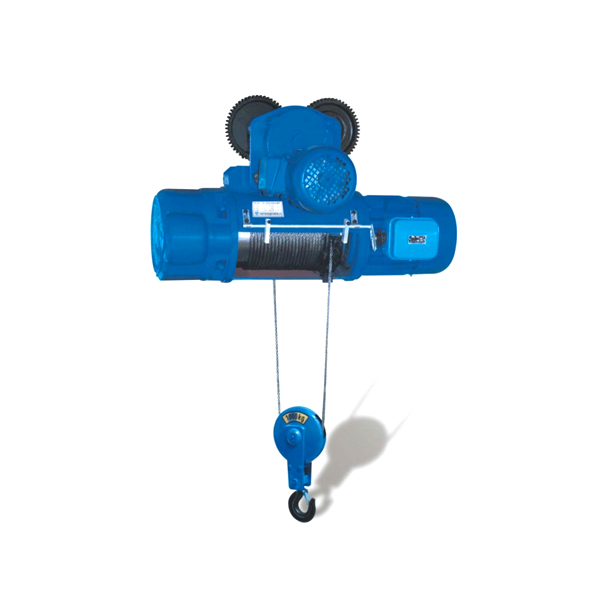

CD1 large capacity 2t electric wire rope hoist lifting height 30m

CD1 Electric Wire Rope Hoist owns normal speed which can meet the requirements of the general situation.

As one kind of lifting tools, it is commonly used in many fields, such as factories, mines, ports, warehouses, garages, shops, and so on.

CD1 Electric Wire Rope Hoist owns a compact and light weight, small size, and it is easy to operate and maintain. Thus it can be installed separately on all kinds of beams and cranes.

Model
CD1 0.5T
CD1 1T
CD1 2T
CD1 3T
CD1 5T
Capacity(t)
0.5
1
2
3
5
Standard lifting height(m)
6-12
6-30
6-30
6-30
6-30
Lifting speed(m/min)
8
8
8
8
8
Running speed(m/min)
20
20
20
20
20
Wire rope type
D-6*37+1
D-6*37+1
D-6*37+1
D-6*37+1
D-6*37+1
I-beam track type
16-28b
16-28b
20a-32c
20a-32c
25a-63c
Min. radius of curve(m)
1.5
1.5-4
2-4
2-4
2.5-5
Power supply
220V-440V, 50/60Hz, 3-phase
Working duty
Mid M3
Mid M3
Mid M3
Mid M3
Mid M3
Model
CD1 10T
CD1 16T
CD1 20T
CD1 25T
CD1 32T
Capacity(t)
10
16
20
25
32
Standard lifting height(m)
9-30
9-18
9-18
9-24
9-24
Lifting speed(m/min)
7
3.5
3.5
2.4
2.4
Running speed(m/min)
20
20
20
20
-
Wire rope type
D-6*37+1
D-6*37+1
D-6*37+1
D-6*37+1
D-6*19+1
I-beam track type
25a-63c
45a-63c
50a-63c
50a-63c
50a-63c
Min. radius of curve(m)
2.5-9
3-4.6
3-4.6
3-4.6
-
Power supply
220V-440V, 50/60Hz, 3-phase
Working duty
Mid M3
Mid M2
Mid M2
Light M6
Light M3

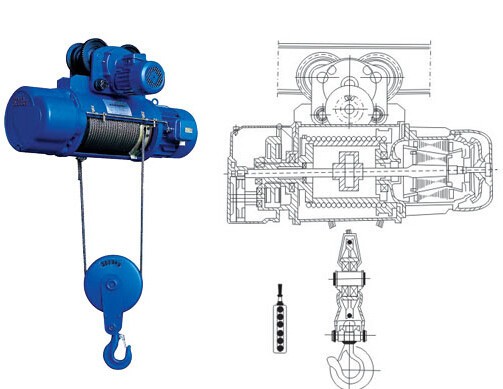

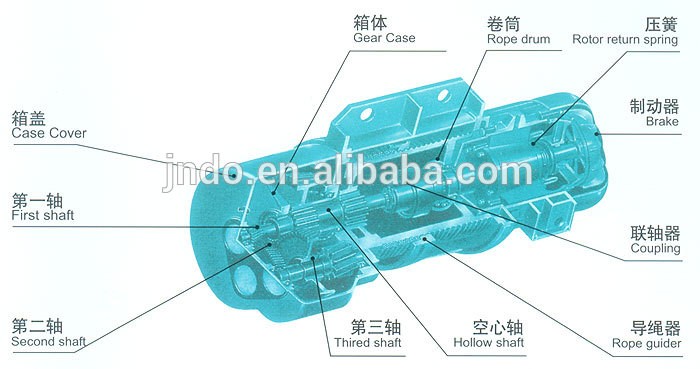

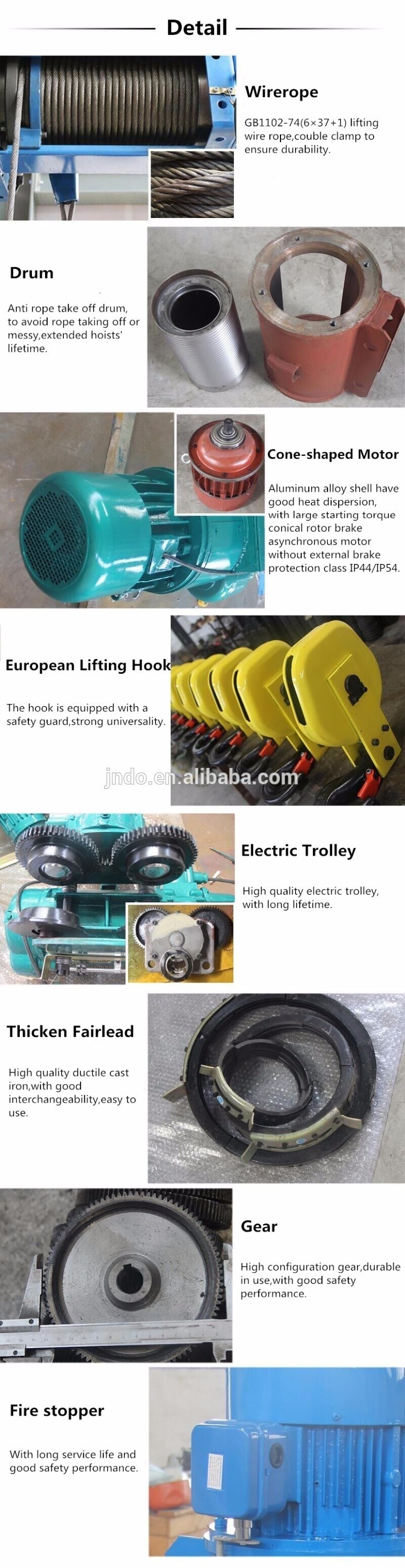

Detailed Images

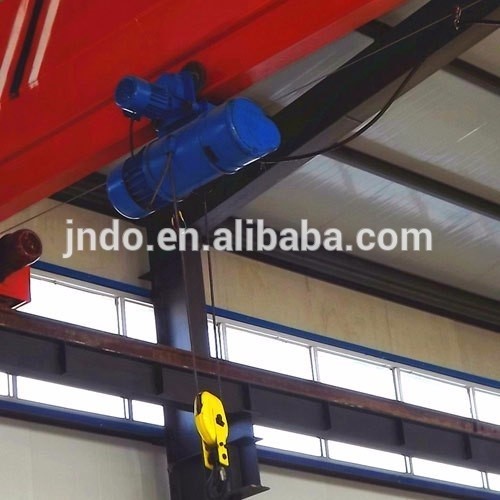

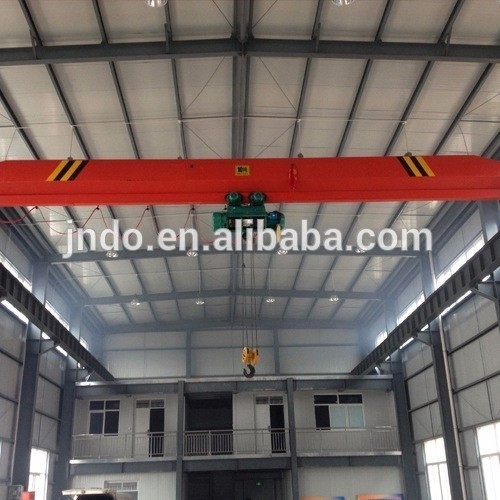

Application

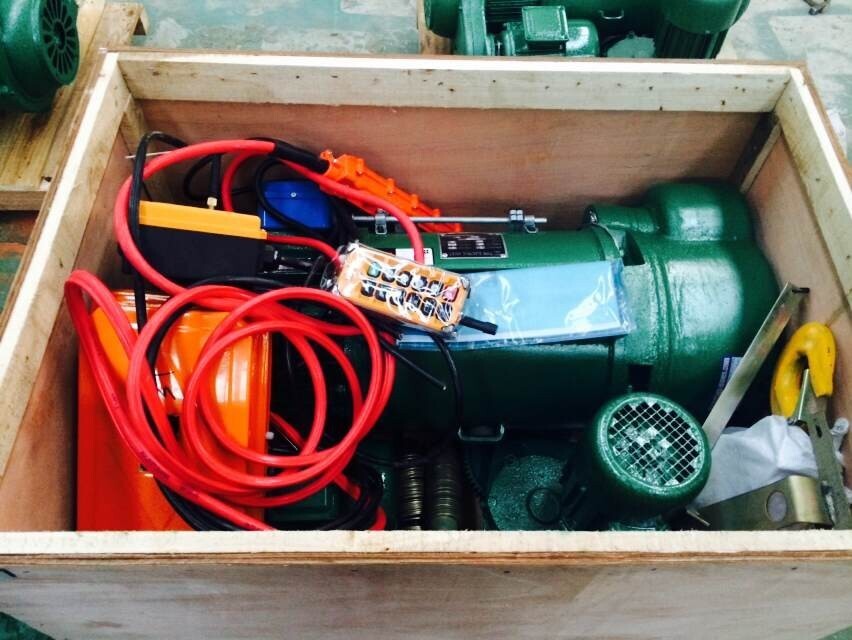

Packing & Delivery
