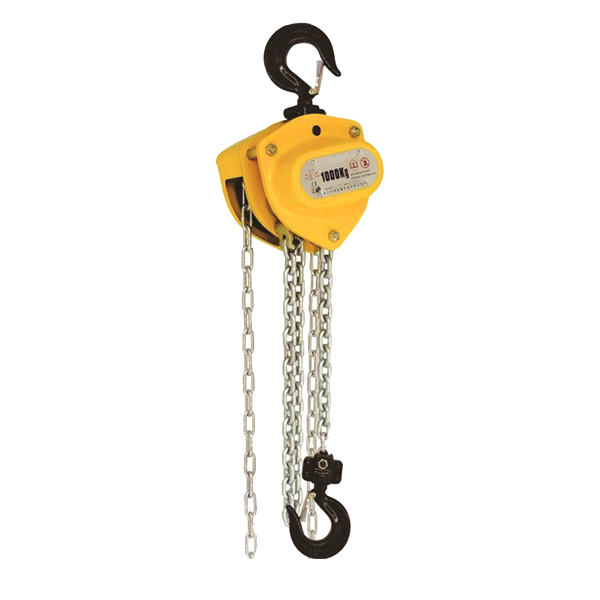

HSZ-C type 0.5 t-20 t chain hoist

  • 18654705603
  • crystalpang@jndohoist.com
  • 2753789627
  • 86-18654705603
  • 86-18654705603
  • 86-18654705603

Features:1.High elastic spring with double pawl brake system design featuring stable operation and smooth braking.It is all significant for improving the security and dependability of the braking system through designing dust cover of braking system.2.Double chain guide mech

Features:

1.High elastic spring with double pawl brake system design featuring stable operation and    smooth braking. It is all significant for improving the security and dependability of the braking  system through designing dust cover of braking system.
2.Double chain guide mechanism in flanged load sheave and guide roller facilitate smooth    movement of the load chain.
3.Rolled-edge hand wheel cover.This provides smooth operation of the hand chain when pulled  sideways.
4.Light weight and easy handing.
5.High efficiency and small hand pulling.





Model

Capacity
(T)

Standard lift(M)

Running test load(T)

chain
falls
chain diameter
(mm)
                   Dimensions
A
B
C
D
HSZ-C 0.5T
0.5
2.5
0.75
1
6
125
111
24
134
HSZ-C 1T
1
2.5
1.5
1
6
147
126
28
154
HSZ-C 1.5T
1.5
2.5
2.25
1
8
183
141
34
192
HSZ-C 2T
2
2.5
3
2
6
147
126
34
154
HSZ-C 3T
3
3
4.5
2
8
183
141
38
192
HSZ-C 5T
5
3
7.5
2
10
215
163
64
224
HSZ-C 8T
10
3
12.5
4
10
360.5
163
64
224
HSZ-C
10T
20
3
25
8
10
585
191
82
224
