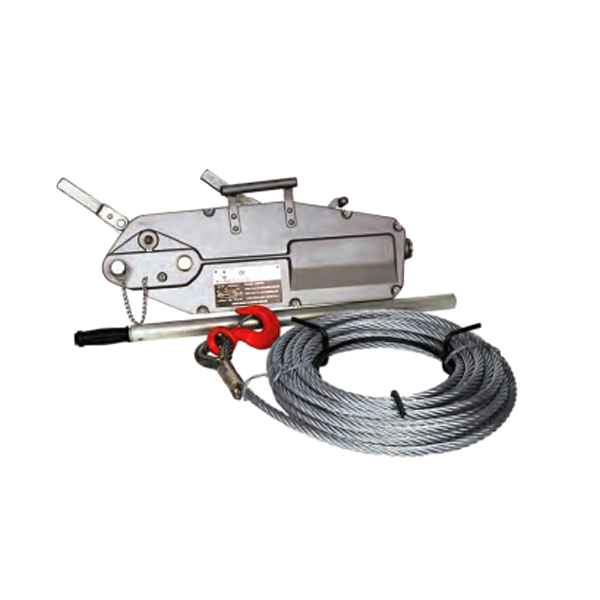

Wire Rope Lever Hoist
1.Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2.All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3.Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3.The hoist has low maintenance requirements and is easy service.
4.Overload protection ensures high personal safety when in operation.
5.Specially built-in shear pins can be replaced without removing the load.
Model | 0.8ton | 1.0ton | 1.6ton. | 3.2ton |
Rated forward travel mm | ≥52 | ≥52 | ≥55 | ≥28 |
Efficient length of forward handle mm | 852 | 852 | 1200 | 1200 |
Drive step | 1 | 1 | 1 | 2 |
Rope diameter mm | 8 | 8 | 11 | 16 |
Standard length of rope mm | 10;20 | 10;20 | 10;20 | 10;20 |
Net weight kg | 6 | 6 | 12 | 23 |
Rated forward hand power n | ≤284 | ≤353 | ≤412 | ≤441 |
Max.Overall size L*W*H mm | 428*64*235 | 428*64*235 | 545*97*286 | 660*116*350 |
