Specifications
1. Capacity scope:0.8T-10T
2. Material: Alloy steel

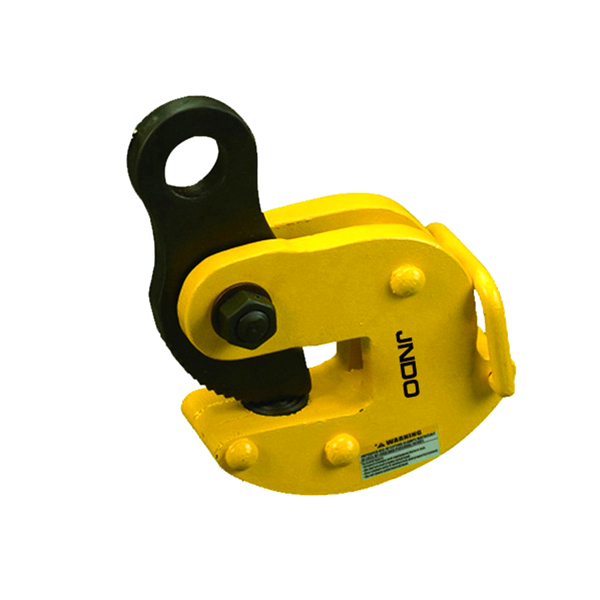

Lifting clamp is a kind of operating lifting tool.
Classification of lifting clamps
Lifting clamps can be classified to horizontal lifting clamp, vertical lifting clamp and overturn lifting clamp.
Usage of lifting clamp
Lifting clamp has features of the uniform distribution of horizontal lifting. It lift the heavy weight by opening the clamp jaw and gripping steadily on the goods. You should make the heavy goods reach the ground firstly and take down the lift clamp in the case of zero load. The vertical lifting clamp has self-lock device with safe and reliable feature. It is convenient to operate with high efficiency and easy maintenance.
| Model | Max load (Kg/2 pieces) | Test load (Kg/2 pieces) | Opening size (mm) | N.W (Kg) | |||
| PDB-0.8 | 800 | 1600 | 0-25 | 2.5 | |||
| PDB-1.0 | 1000 | 2000 | 0-30 | 3.5 | |||
| PDB-1.6 | 1600 | 3200 | 0-30 | 4.0 | |||
| PDB-2.0 | 2000 | 4000 | 0-40 | 5.0 | |||
| PDB-3.2 | 3200 | 6400 | 0-45 | 6.0 | |||
| PDB-4.0 | 4000 | 8000 | 0-50 | 6.5 | |||
| PDB-5.0 | 5000 | 10000 | 0-55 | 7.5 | |||
| PDB-6.0 | 6000 | 12000 | 0-65 | 10.5 | |||
| PDB-6.0B | 6000 | 12000 | 0-130 | 22 | |||
| PDB-8.0 | 8000 | 12000 | 0-100 | 25 | |||
| PDB-10 | 10000 | 15000 | 0-125 | 33 | |||
