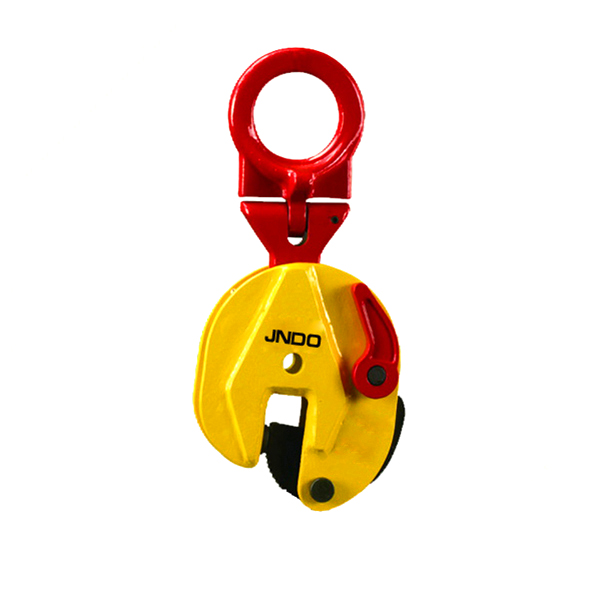

steel plate vertical lifting clamp
1. Material: High quality Alloy steel
2. Work loading: 1.6-4.5T
3. CE certificate
4. safe and easy operate
Specification:
1. Material: High quality Alloy steel
2. Work loading: 1.6-4.5T
3. CE certificate
4. Drop forged alloy steel quenched and tempered
5. Used in pairs,2 0r 4pieces work together
6. Forged head and forged gear set ensure the durability and safety.
7. It can only hoist one steel plate at one time, stack up lifting is forbidden.
8. Can made according to customer's requirement.
| Mode No. | Open size | Working load | Weight |
| (mm) | (kg/2pcs) | (kg) | |
| CD1.6 | 0-20 | 1600 | 7.2 |
| CD3.2 | 0-25 | 3200 | 15.5 |
| CDK1.6 | 20-40 | 1600 | 7.2 |
| CDK3.2 | 25-50 | 3200 | 16.5 |
| CDK4.5 | 25-50 | 4500 | 16.8 |
