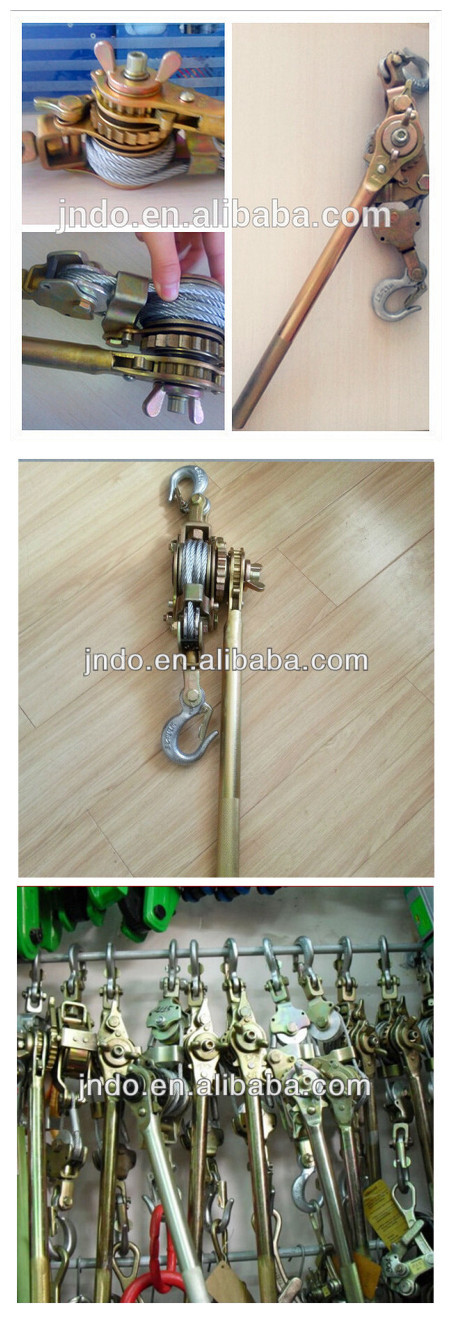

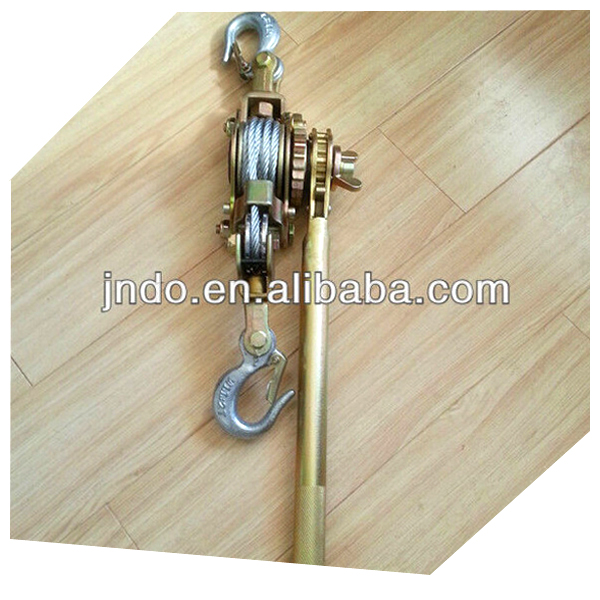

1000kg wire rope hand winch rachet puller
♥This series of hoist is mainly used in the large and middle sized concrete, steel structure and mechanical equipment installation and dismantling
♥The structural characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf and road and bridge
Features of the Hand Winch products:
♥large drum hub to maximize cable life.
♥self-activating automatic brake hold the load securely when crank handle is released
♥strap/steel cable/wire rope available
♥safety guard cover available
♥Top quality with competitive price.
♥Widely used in the double beam bridge crane and gantry crane
♥Easy to install and high quality.
♥Compact structure and reasonable design.
♥overload protection,shock protective, Explosion-proof performance
Hand Ratchet Puller parameter:
Model | HRP10 | HRP15 | HRP20 |
Capactity(kg) | 1000 | 1500 | 2000 |
Maxmium lift(mm) | 1210 | 1400 | 1400 |
Distance between hooks(mm) | 410 | 480 | 480 |
Wire rope dia (mm) | 5 | 5 | 6 |
Wire rope lenght (mm) | 2300 | 2300 | 2300 |
Net weight(kg) | 3.2 | 4.2 | 4.3 |
Package(cm) | 43x12x8.5/pcs 45.5x39.5x19.5/6pcs | 48x12.5x9/pcs 50.5x42x21/6pcs | 48x12.5x9/pcs 50.5x42x21/6pcs |
